All gauges have anti?fog lenses and orange backlighting.
Large gauges fit 3?3/8″ (85 mm) hole in dash.
Small gauges fit 2?1/8″ (52 mm) hole in dash.

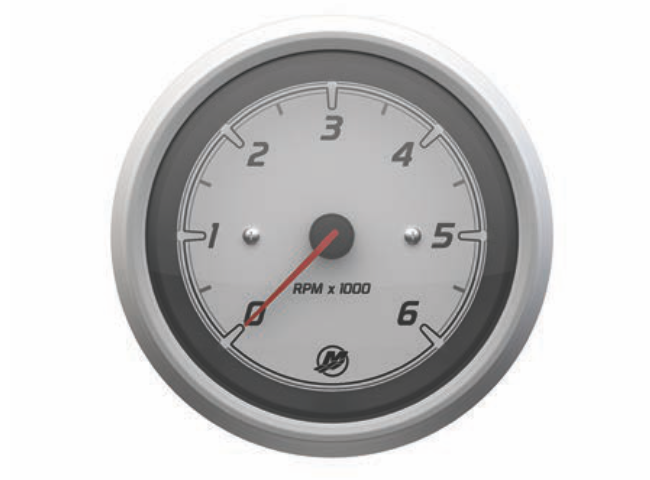

Tachometers require tachometer harness or ignition/choke assembly for connection. Will require AGI converter for digital engines.
Speedometers include 25ft. (7.6 m) of tubing.
Fuel Level Gauges use 12V system and require 240 ohm sender.
Trim Gauges require sender, sold separately.
Water Pressure Gauges include 25ft. (7.6 m) of tubing and hardware.
Cruiselog Gauges include wiring.
Volt Meters require tachometer harness or ignition/choke assembly for connection.
Water Temperature Gauge does not include sender. Use 120?240F gauge for all MCM/MIE gasoline engines and Mercury/Mariner two?stroke V6 outboards. Use 60?200F gauge for FourStroke outboards and 40?125hp two?stroke outboards.
Oil Pressure Gauges require sender, available separately.
